Technical Specifications

Light Source: LED

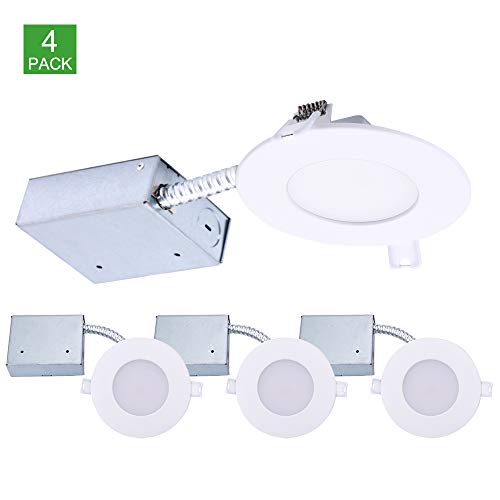

Item Type: Downlights 4″
Watta :11W
Color Temperature(CCT): 3000K
Luminous:750
CRI (Ra>):80
Input Voltage(V):120V
Working Lifetime(Hour): 35,000
Warranty(Years):5 Years
Dimmable: YES, (10~100)%
Certification: ETL
Working Temperature(℃):-20 – 50
Material : Aluminum Alloy
Model Number:AL-DLDS240
Power Driver: Isolated ,Constant Current, Flicker-free ,Junction box
Aging Test: 100%, 5hours Min.
Fire Rated:90 minutes max
Min. Limited Space Application: 1&1/2″ Min. Ceiling Space
Cut out: 4 inches

Downlights Features

1.3000K COLOR used for home, hotels, coffee shops and other warm and sweet environments
2.This slim LED is great for tight paces, designed for new constructions, remodels or retrofit installations. Closets, hallways, bathrooms, kitchens, basements, entry ways, any other small areas

Installation Guide:

1.Cut out the hole in the ceiling( use the measurement of circle on the box)
2.Open the box and take out the accessories of the wire clip
3.Prize up the plug put the wires through the hole
4.Insert the ends of the wires separately(N-N, G-G , L-L ,) into the clips and turning.
5.Lock the box.
6.Holding the clips and put the fixture into the whole.
7.Release the springs and push the fixtures in to the hole.
8.Push the fixture into installation hole while holding the clips, as we show in the pictures.
9.The installation guide included in the package.

Product Features

• ENERGY SAVING: Get the 11W LED Downlight to replace 65W filament lamp bulbs, reducing energy use by 80%. Verified to pass 30,000+ hours testing, ENERGY STAR certified, energy saving and environmental protection.
• ULTRA SLIM DESIGN: Silm led downlighting with Jbox saves you the most space. Only 2″ clearance of ceiling space that can be installed. Solve the problem of narrow ceiling space. Best Space saving downlight.
• ADJUSTABLE CEILING LIGHT: Compatible with most dimmers, 10%-100% smooth dimming range so that can be customized as you want. Dimmable design allows to use at kitchen, living room, bedroom, garage, hallways and basement.
• EASY INSTALLATION: Connect the provided junction box to the light, using male/female cable and use spring clip to fix it on the ceiling, no other tools are needed, install in minutes by yourself.
• 100% SATISFACTION: The 4 inch dimmable LED downlight via ETL, UL and ES certified. Safety, reliability and energy saving. 5 Year Warranty, 100% satisfication on Amaxlite.
