Item No.: HS-D4-S3

Power: 8W

Input Voltage: AC110/120V (60Hz)

Power Factor:  >0.95

LED Type: SMD2835 48PCS

ColorTemperature:  2700K/3000K/4000K/5000K/6000K

CRI: Ra80

Lumen Flux: 640-700lm

Beam angle: 120 Degree

Dimmable: Yes

Lifespan: 40,000H

Working Temperature:  -20~50℃

Driver Box Size: L93*W60*H31mm(L3.66*W2.36*H1.22 inch)

Material:  Aluminum + PC Diffuser

Downlight Size: Ø117*H12mm (D4.60xH0.5 inch)

Weight: 120g/pc (350g include driver box)

DRIVER:

Type: Class 2Dimmable Type IC, Isolated constantcurrent driver

Item Number:LT12W120-48-C0250

Input:AC108-132V, 50/60 Hz, 0.18A

Output: DC36V,0.25A Max.

Power Factor:0.95

PowerEfficiency: 85%

OperatingTemperature: Tc 90°C, Ta 60°C

Which lightcolors work for me?

3000K: Used in family homes, hotels, coffee shops and other warm and sweetenvironments.If you need warmer light, choose 2700K.
4000K: Used in homes with a need of a soft white lighting atmosphere.
5000K: Used in offices, working areas, shopping malls and other commercialareas that needs super bright lighting

Application Areas:

Ideal for new constructions, remodels or retrofit installations.
Closets, attics, hallways, bathrooms, kitchens, basements, soffits, entry ways,porches, garages
Stairwells, corridors, nursing/retirement homes, condos, elevators, apartments,and any other small areas

Product Features

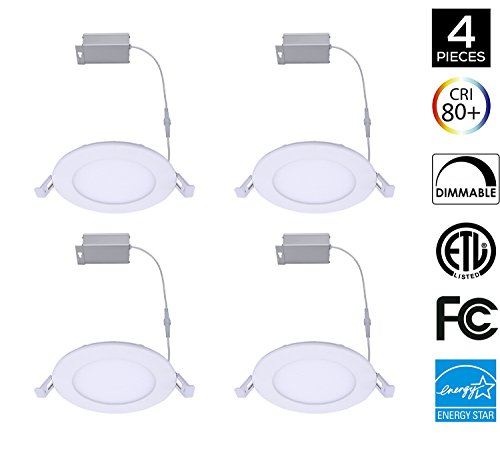

• 4″ round LED panel light fixture with isolated external driver installed inside junction box.
• Ultra-thin, 1/2″ thick LED fixture, edge-lite, consumes 8W, emits over 690 lumens at 5000K and CRI 80+, offers comfortable soft white light and less glare to eyes.
• Type IC rated, recessed ceiling light approved for direct contact with insulation and NO pot light housing is required; Air-tight and suitable for damp location.
• For new construction, insulated and dropped ceilings, easy to install into the 4″ cut out.
• Dimmable with triac dimmers 100% – 5%; cETLus and Energy Star Listed.
