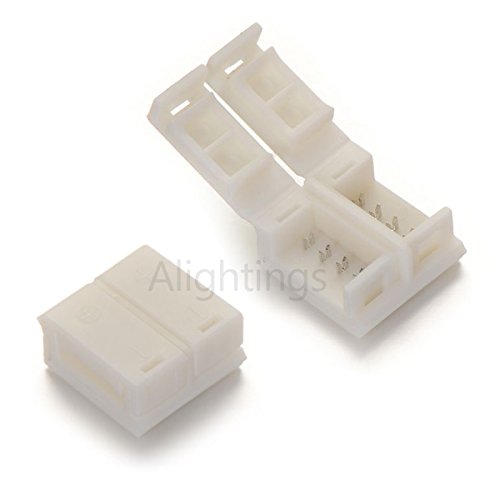

Alightings 4 pin LED Strip Connector for 5050 RGB Waterproof Strip lights,Connect Strip to Strip (Pack of 10)
Our 10mm RGB 5050 LED strip connectors are a simple, frustration-free solution for all of our LED light strip connection and extension needs. These solderless connectors install with a simple clasp attachment, meaning that you can achieve a safe and secure connection without any tools. These connectors come in a variety of lengths and styles to meet your needs, and they all come with our Alightings 1 Year Warranty
Product Features :
• Connect your strip light to another strip light, dimmer, or power supply
• Simple, tool-free installation
• 1 Year Warranty
Installation Instructions :
• Ensure your section of LED light strip has two contacts (+ and -) and the contacts are both clean
• Open the white clasp of the connector
• Insert the LED light strip into the clasp, under the prongs – making sure to match the + and – on the strip to the + and – on the clasp
• Close the clasp
• Gently pull on the LED light strip to confirm you’ve made a solid connection
• Your connection is made!
Our connectors and extensions are fully bendable and are perfect for extending a run of LED light strip across a gap, around an obstacle, or for making a bend.
Technical Specifications :
• Connector Size : 15*15*8 mm
• Metal material: Copper/Surface treatment:tin
• Plastic material:NyLon66 UL94V-0
• Wire range: AWG#22#20
• Applicability PCB board: thickness:0.2-0.4mm / width:10mm
• Applicable specifications: 120/60/30leds per meter SMD5050 RGB Waterproof strip
• Working voltage: DC12-24V
• Working current:
Product Features
- Easy-Clasp Solderless Connectors
- Compatible with 10mm WATERPROOF RGB 5050 LED Strips
- The connection is full and completed without losing the contacting surface. Also it improve the performance by fixing various shortage that exist in present led strip connector in the market
- This innovative LED strip connector series ，the extrem slim and light color housing can reduce its own shadow which may cover the LED on the FPC
- These new and improved connectors have teeth that bite through the coating on our Weatherproof Light Strips, and make connecting cut strips simple
Loading...
Good solderless connectors, learn to use them correctly and you’ll be happy. I was going to rate these 1 star until I figured out what I was doing wrong. These work great IF you use them correctly.First, make sure to get the correct ones. The bad reviews seem to be mostly related to using the wrong type.Second, make a good connection THE FIRST USE. These make the best connection the first time. While they can be reopened and reused, I try not to consider them reusable because the connection isn’t as strong on reuse. Make sure everything is aligned…
LED Strip Tease with some success Just received these connectors and had a little difficulty figuring out how to make the connection work. They appear to be unique in terms of facilitating wire to LED light strip connections without the need for soldering. After trying to connect without success, I pried open the LED strip side of the connector to about 90 degrees (as far as it would go). I then slid in the light strip (with the paper tape on the bottom peeled off). Once it was in against the plastic piece stopping it from…
Couldn’t get it to work. Not once. Useless. The wiring loom portion is pretty good. Connecting the four-wire harness is simple and effective. It’s the other side that doesn’t work. The teeth that pierce the connectivity pads definitely punch through the LED strip, but they don’t make a connection. These are with the waterproof LED strips, which I had to pull away the plastic coating in order to connect… Which kind of defeats the purpose of waterproofing. And the act of separating the strip from the plastic will bend the strip…
