Alightings 5050 RGB LED Connector Connect Strip to Strip, Applicable for 10mm 4 pin Standard Waterproof Strip Lights (Pack of 10)
NOTE: 1.Make sure your section of LED light strip is 10MM wide 5050 RGB STANDARD WATERPROOF LED Strip Light.
2 .If your strip are NON-WATERPROOF or NON-STANDARD WATERPROOF lights(too soft or too thin), pls use this item (ASIN:B01MU7FKUK)
Firmly bite the strip, no need to peel back the silicon cover
Updated version of LED strip connectors, assemble wire by yourself as needed, flexible to different project! No need to solder. Just clasp your prepared led strip section into the connector to get connected. Connect waterproof LED strip without removing surface coating silicon gel, compatible with 30-120 LEDs/M strip, made of flame retardant material, safely use. Support high current LED strip lights.
Installation Instructions:
1.Open the transparent cover of connector up to 90 degrees.
2.Peel off the 3M glue from the back of the strip light.
3.Insert the strip section to the END of strip side of connector, keep the lamp face up,and the tape is on the pin.
4.Close the transparent cap with a plier until it is fully seated on both sides of the bottom base.
Note: Make sure that the positive and negative electrodes on the light strips at both ends of the connector are corresponding.
Package Contents:

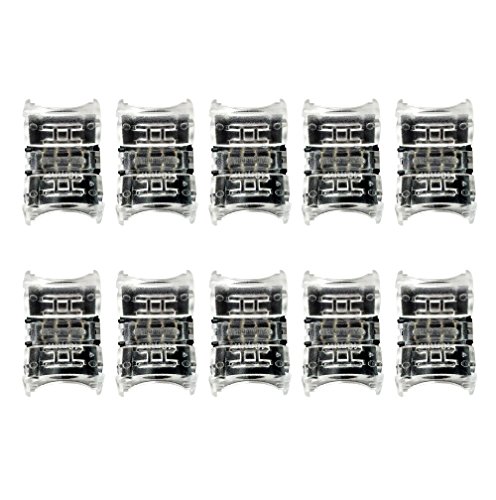

10pcs Strip to Wire Connectors
Product Features
- This LED Strip Connector suitable for 4 pin 10mm 5050 waterproof LED strip lights(PU surface,not Silicone surface), Make rgb led strip to strip joint connection between 2 section of light strips
- Connects directly to 4pin 10 mm PCB board(No need stripping glue coating on PCB). Compatible with both 12v and 24v 5050 rgb led strip, addressable led light strip ws2813(upgraded ws2812b led strip), quick and flexible work for LED Strip Light projects
- Firmly bite through the led light strips, don’t like old style led strip connectors only conductive connection, it is a solid connection and much stronger
- If your 5050 rgb strip is NON-WATERPROOF or NON-STANDARD WATERPROOF lights(too soft or too thin ), pls refer to this item (ASIN:B076BFX6P3)
- The package includes 10pcs strip to strip connectors.Provide with a full 30 days money-back guarantee for any unsatisfied order
Loading...
Good solderless connectors, learn to use them correctly and you’ll be happy. I was going to rate these 1 star until I figured out what I was doing wrong. These work great IF you use them correctly.First, make sure to get the correct ones. The bad reviews seem to be mostly related to using the wrong type.Second, make a good connection THE FIRST USE. These make the best connection the first time. While they can be reopened and reused, I try not to consider them reusable because the connection isn’t as strong on reuse. Make sure everything is aligned…
LED Strip Tease with some success Just received these connectors and had a little difficulty figuring out how to make the connection work. They appear to be unique in terms of facilitating wire to LED light strip connections without the need for soldering. After trying to connect without success, I pried open the LED strip side of the connector to about 90 degrees (as far as it would go). I then slid in the light strip (with the paper tape on the bottom peeled off). Once it was in against the plastic piece stopping it from…
