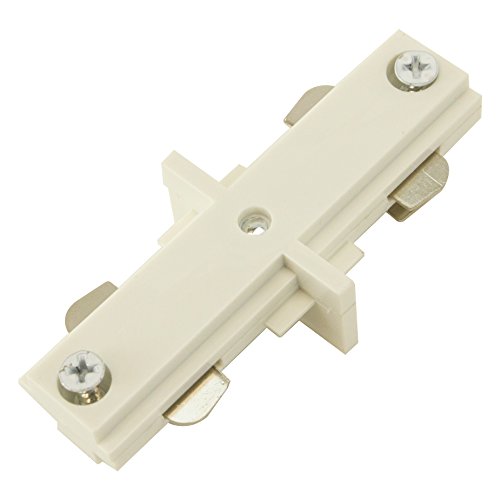

Direct-Lighting H System Single Circuit Track Straight Connector I Shaped Joiner 120V 20AMP HT-850095 (White)

Direct-Lighting brand H system single circuit I shaped straight track connector is designed for H typed 3-wire single track. The HT-850095 joiner allows to joins 2 straight track sections with electrical continuity, continue to share the same single power supply from the original power source.
The typical H system 3-wire single circuit track is designed with 3-wire. 2-wire on one side, and 1-wire on the other side. Simply look for the debossed polarity line on the track, match polarity on the track than pushes into track sections.
Item Number: HT-850095
Track System: H system single circuit track (aka 3-wire-1 circuit track system )
Voltage: 120V
Amperage Capacity: 20 Amp max.
Shape: I-shaped
Finish:
Standard: UL Listed

Product Features

• COMPATIBILITY : H typed. 3-wire single circuit track system. 120V single circuit H track. Rated 20 amps at 120V.
• FEATURE : Joins 2 straight track sections with electrical continuity. Share power supply from the original power source.
• EASY TO INSTALL : Match polarity on the track, than connects the track sections.
• MATERIAL : Plastic and metal.
• RATING : UL Listed. Rated for Indoor use or Dry locations.
