ECO-WORTHY 1KW Single Axis Solar Tracker Complete Kit Sunlight Track
Standard 1 year warranty Free-maintenance.
Single axis tracker provides up to 30% more power production
Engineered to hold up to 1000 Watts of solar panels
Waterproof with IP 65.
The actuator is able to handle max 3A current.
controller is able to hold max 8A current.
Small self ¨Cconsumption.
SAFTY PRECAUTION CAUTION: Never approach a solar tracker while the ECOWORTHY Solar Tracker electronics are ¡°on¡. It can move unexpectedly and the powerful linear actuator/motor can cause serious injury or death. Always disconnect the ECOWORTHY Solar Tracker electronics from its power supply before approaching the solar tracker.

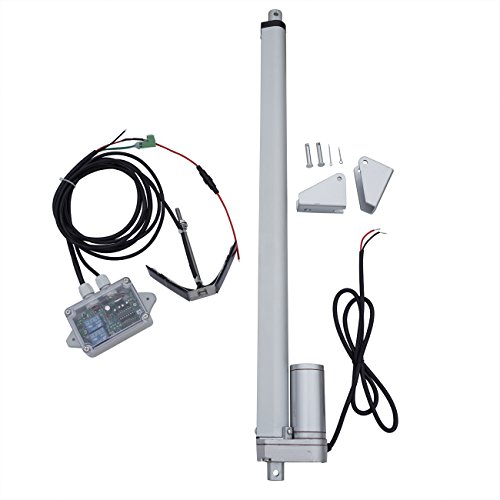

Package Inlcude:
1. 1pcs Linear Actuator
2. 1pcs solar tracking controller with light-sensor All item will be checked before we sent out it
INSTRUCTIONS
Step 1: Connect the bracket and the frame
Step 2: Connect the bracket and the LinearActuator
Step 3: Assemble the solar panel.
Step 4: Assemble the solar tracking controller and the Solar tracking sensor. Connection the power supply, then system starts working
IMPORTANT NOTES
1) All Brackets and solar panels in the above pictures are only for reference. Please choose appropriate bracket according to actual situation. (Such as Solar panel dimension etc.) 2) Ensure that installation orientation of tracking sensor is consistent with bracket’s moving direction
3) When assembling actuator, ensure actuator’s position matches well with bracket’s actual angle.
4) If actuator’s moving direction is opposite to detected direction, please turn actuator by 180 degrees or change positive and negative position to power supply.
5) Power supply of controller can be directly connected to battery of system, but please make sure battery is 12V (voltage of battery and controller must be consistent).
ATTENTION
When assembling, ensure that length of bracket is proper for system in case brackets will be stuck during working process
Product Features
- IMPORTANT NOTE: Please refer to the Product Description to learn more about the working functionality and troubleshooting steps
- Track the sunlight from easy to west ; Singal axis solar tracker increase by 30% power output
- Tracker will return to the east in the moring
- engineered to hold 150KG
- Flat the solar panel in the raining or windy days
Loading...
Excellent tracker! Ok if you want a simple to set up tracker, this is the way to go. The only reason I’m not giving 5 stars is the package had no instructions in it, but it does not take a rocket scientist to figure out how to make it work. I did contact the original manuf (ECO-WORTHY) and they sent me some basic instruction within 24 hours. The item I got was different than the one shown, but much better. The controller came with an LCD display that gives way more information that the version without the…
best price for this anywhere! This tracking system is hard to beat. Easy setup and hardly any maintenance is needed to keep this up and running. I have it on a small 12v 5AH sealed lead acid Battery you would use in an alarm system. The only thing I slightly modified is the sun sensor. I bent the two sides down so that it would be more accurate at keeping the pannels streight towards the sun. If I build another array of pannels, I won’t hesitate to buy this again!5/12/15 UPDATE: the sensor and circuit…
