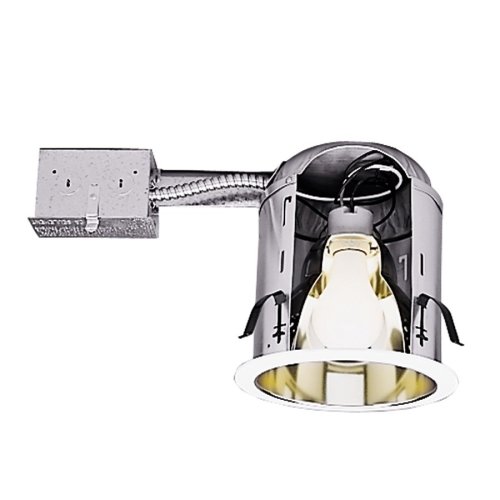

Halo H7RICT, 6″ Housing IC Remodel Housing 120V Line Voltage
The H7 family of recessed housings are the standard in the industry for both commercial and residential applications. The wide variety of trims available allows a number of different lighting effects to be created with one basic housing. The H7RICT is designed for installations where the housing will be in direct contact with insulation. H7RICT may be converted into AIR-TITE installation when used with AIR-TITE trims.The H7RICT is the fixture to choose if you want a larger-aperture (six inches) lighting solution for use in a remodeling project where the housing will come into direct contact with insulation.
The H7RICT offers you some flexibility in lighting and appearance. The wide variety of trims available with Halo’s H7 family of recessed housings allows you to match your décor, finish, and desired lighting effects. In addition, the adjustable socket bracket allows you to use a range of different lamp types.
Halo makes installation easy with an array of useful features. The H7RICT can be installed from below the ceiling using the included remodel clips (these accommodate 1/2- and 5/8-inch ceiling materials). The fixed-position porcelain socket with screw shell provides consistent lamp positioning, and three “Quick Connect” connectors eliminate the need for separate wire nuts.
Available with a variety of trim options (sold separately). UL rated for damp location, feed through, and direct contact with insulation and combustible material; CSA certified; IP rated. For a non-IC-rated version of this product, see Halo’s H7RT.–Josh Dettweiler
What’s in the Box
Six-inch-aperture housing
Product Features
- Quick Connect wiring connectors included in junction box
- Thermally protected
- Die-formed housing
- Remodel springs accommodate 1/2″ and 5/8″ ceiling material
- NM cable pry-outs and conduit knockouts in junction box
Loading...
Installation tidbit– ‘cutting hole’ and ‘locking clips’ –seamless install but these are need to knows Very easy to work with and an almost seamless install. Would strongly suggest using an ‘adjustable holesaw’ designed for can lights. Found as: Adjustable Can Lights Holesaw or search something to that effect. The lip on the can that prevents it from falling into the hole is only approximately 5/16″ wide. If you attempt to cut the hole with a keyhole saw or via some other method ‘by hand’, then the likelihood of cutting your hole too large is highly probable.If you use one…
Gets the job done, great for traditional can lights and future LED retro fit kits Worked perfectly for my kitchen update. I love look and light of traditional can lights, and didn’t want to rule out being able to add LED’s later, and since there are so many retrofit LED kits, it was not a problem. Yes, the side clips can be a problem but you just have to keep working at it. I found that some of the clips I had to shove all the way to the top notch, and then push in with a flat head screw driver to secure it up in the locked position. If you have having issues with that and…
Halo make a great product
