Lithonia Lighting WF6 LED 30K ORB M6 13W Ultra Thin 6″ Dimmable LED Recessed Ceiling Light, 3000K, Bronze

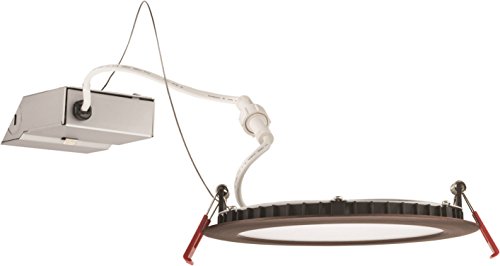

The Lithonia Lighting Wafer-Thin LED recessed downlight with remote driver box combines high quality light output and efficiency while eliminating the pot light housing for competitive affordability. This innovative wafer slim Type IC design allows easy installation for new construction or remodel from below the ceiling without the requirement of a pot light housing.



Technical Specifications:

Power:  13W

Input Voltage:  120V (Connects directly to power supply via provided UL recognized driver)

Luminous Flux: 1020LM

Emitting Color:  3000K(Bright White)

Dimmable:  Yes

Light Source:  LED

CRI: 80

Surface Size: 6.7 inches

Back Hole Size: 5.9 inches

Dimension: 6.7 x 6.7 x 1.1 inches

Light direction: Downlight

Average life: 36,000 hours

Warranty: 5 years – Limited

Electrical: Plenum rated cable connector to connect from module to remote driver box. Isolated driver integrated inside steel remote box with four 7/8″ knockouts with slots for pry-out

Meets Highest Industry Standards: CSA certified in the USA and Canada, Energy Star Rated, IC Rated, Wet Listed and Air Tight

More electrical information and complete list of compatible dimmers are located on spec sheet



How many LED lights do I need for the room?

Wafer 6 inch: One unit is needed for about every 2.5sq feet in an 8 ft ceiling room

3 units for a room ranging from 6sq ft – 9 sq ft

4 units for a room ranging from 10sq ft – 12 sq ft

6 units for a room ranging from 12sq ft – 15 sq ft

9 units for a room ranging from 15sq ft – 19 sq ft



Which light colors work for me?

3000K: Used in family homes, hotels, coffee shops and other warm and sweet environments.

4000K: Used in homes with a need of a soft white lighting atmosphere.

5000K: Used in offices, working areas, shopping malls and other commercial areas that needs super bright lighting



Application Areas:

Ideal for new constructions, remodels or retrofit installations.

Closets, attics, hallways, bathrooms, kitchens, basements, soffits, entry ways, porches, garages

Stairwells, corridors, nursing/retirement homes, condos, elevators, apartments, and any other small areas



Installation Guide:

Double check and measure the ceiling hole. Open the cover of the remote driver box. Push and remove one of the knockouts on the side plate. Connect the remote driver box to the light fixture and tighten nut connector. Place remote driver box through the cut-out hole. Pull the spring clip on the fixture up and through the ceiling hole. Place module in the hole Turn the power on

Installation guide for kit included in the package.

Product Features

  • EASY AND SAFE INSTALLATION – innovative, slim design allows for easy retrofit, remodel or new construction installation from below the ceiling. Only need 2″ clearance for install
  • HIGHLY RATED FOR MULTIPLE LOCATIONS – CSA, IC, Airtight and Wet Location listed make LED Wafer ideal for indoor and outdoor residential, hospitality, commercial and multifamily applications and safe to contact insulation
  • EXTREMELY BRIGHT DIMMABLE LEDs use 13 watts to provide 1,020 lumens with an 80 CRI, close to 80 lumens per watt. Dims down to 10% and compatible with select Lutron, Levitron, Synergy and Sensor Switch dimmers
  • ULTRA THIN LED design only requires a 6 inch ceiling hole and 2 inches of ceiling space are needed to fit LED wafer recessed light and UL recognized driver
  • SAVES MONEY AND TIME changing bulbs – Energy Star rating provides high light output with minimal power usage and will last 36,000 hours or +16 years when on every day for 6 hours/day
