TronicsPros 10pcs 10mm 2 Pin L-shape SMD 5050 5630 LED Strip Connector Right Angle Corner Connector for Single Color 5050 5630 LED Strip Lights Strip to Strip Connector
Please note that “LITAELEK” is the only authorized seller to sell these TronicsPros 12V inline switches. If you bought from other unauthorized sellers, the quality is not guaranteed.
Feature:
These L shape connectors for Single Colour 5050/ 5630 led light strips comes with 2 easy-clasp connectors and a 90 degree L shape PCB board. You can attach it with your light strips directly without any tools or wielding operations.
The wireless design ensures seamless layout when you need to spread your light strips around sharp corners.
Compatible with both non-waterproof and waterproof 10mm Single Colour LED light strips.
Installation tips:
Open the cap on the connector and slide in the led strip. Make sure the poles match correctly, then clasp the cap. For waterproof light strips, you need to peel off the silicone around the soldering line first.
Note:
If the LEDs flicker or do not light up, it is because there is poor contact between the L-shape connector and the LED strip. To solve the problem, please follow these steps:
01.Power on your LED strip.
02.Open all the caps of the L-shape connector.
03.Insert your LED strip into the connector, slightly pull and push your LED strip to adjust the contact point between the 2 copper contacts on your LED strip and the 2 prongs in the connector. If the LEDs still do not light up, please use your finger to press a little hard on the 2 prongs in the connector.
04. If the LEDs still do not light up, please adjust the contact point between the 2 copper contacts on the L-shape PCB board and the 2 prongs in the connector, until you see the LEDs light up. Then you can close all the caps of the connector.
Package Includes:

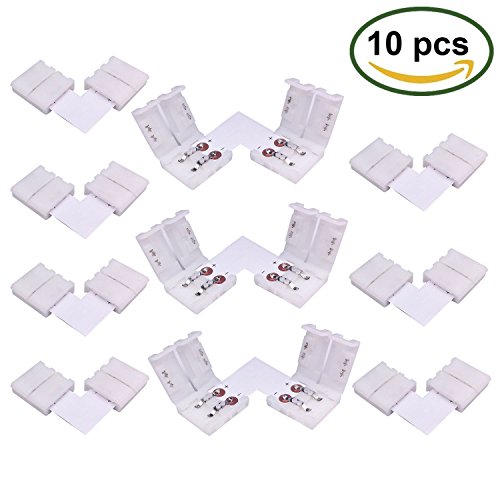

10x 2-pin L-shape Connectors for 10mm wide Single Color 5050/ 5630 LED Strip Lights
Product Features
- Used for both Waterproof and Non-Waterproof 10mm wide SMD5050/ 5630 Single Colour LED strip lights
- For example, it works for HitLights, LEDMO, SUPERNIGHT, Lighting EVER, WenTop , ALED LIGHT, Nexlux, LEDJUMP and Tingkam single color SMD 5050/ 5630 LED strips, etc.
- Simple but effective,tool free,easy installation by clipping system, make neat and good looking LED strips turn corners, couldn’t be any easier using these connectors
- 2 channel PCB chip with 2 easy-clasp connectors, seamless extension for your Single Colour light strips around sharp corners
- With these L-shaped connectors, you can avoid twisting your led strips which potentially damages your LED strip
