TronicsPros 10pcs 4 Pin Solderless Waterproof LED Strip to Strip Connector RGB Flex LED Ribbon LED Rope LED Tape Light Gapless Adapter for 10mm Wide Waterproof SMD 5050 RGB Flexible LED Strip Light
Our solderless waterproof 10mm (SMD5050) RGB LED light strip connectors are a simple, frustration-free solution for waterproof 5050 RGB LED light strip connection and extension needs.
Installation Instructions:
1.Ensure your section of LED light strip is WATERPROOF SMD 5050 LED Strip and has 4 contacts (+, B, R, G) and all the contacts are clean.
2.When you cut your LED strip from the cutting line, please preserve the area of each copper contact on the LED strip to be bigger than the area of each corresponding pin in the connector. This is a very important step to ensure good conductivity between the connector and the LED strip.
3.Open the white clasp of the connector.
4.Peel off the 3M tape around the soldering/Cutting line area on the back of the LED strip, then insert the LED light strip into the clasp, with the 4 contacts of the led strip sitting ON the 4 pins of the clasp – make sure to match the + side of the strip to the + side of the clasp; (Note: There is no need to peel off the silicone on the surface of led strip around soldering line area.)
5.Close the clasp.
6.Your connection is successfully made!

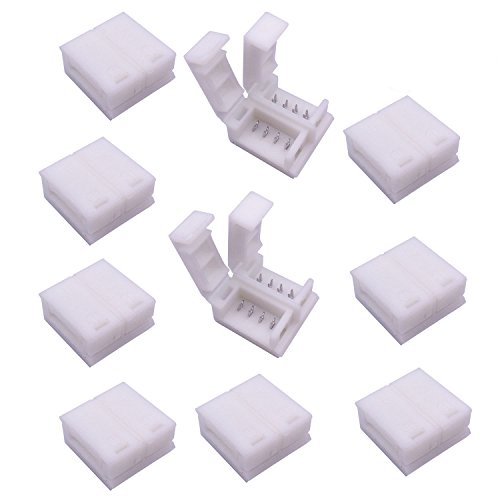

Package includes: 10x 4-pin connectors for 10mm wide Waterproof RGB 5050 LED strip.
Product Features
- Waterproof-design Easy-Clasp Solderless Connectors, only work for 10mm wide WATERPROOF SMD 5050 RGB LED Strips.
- For example, it works for SUPERNIGHT, econoLED, eTopxizu,WenTop, LEDMO and Tingkam WATERPROOF RGB 5050 LED strips, etc.
- Easy to Use: No need to solder. Just clasp your prepared led strip section into the connector to get connected.
- Provide solderless, gapless and seamless connection for WATERPROOF SMD5050 RGB LED strips
- From TronicsPros: Package Comes with Unique Amazon Barcode “X0010A5W2B”. 10pcs inside.
Loading...
Worth It I have watcherproof LEDs that have the rubber on top of them. This connector works perfectly. I cut off the rubber on the copper ends because I didnât want to risk a fire but I think it would work if you donât. Make sure that you align the + sign and the letters correctly. The connector was easy to use, just put the strips in and close it, you should hear a snap. I highly recommend this product.UPDATE: After a couple of months, for some reason the connector is shorting out? And now…
Work great! Highly recommend it for waterproof RGB 5050 LED strip that is 10mm in width. I bought these connectors for my waterproof RGB 5050 LED strip that is 10mm in width. They have successfully connected several pieces of my LED strips that had been cut off. I have summarized the installation steps and precautions for other shoppers’ reference.Installation steps:1.Carefully cut off the LED stip along the cutting line, so that the area of the 4 copper contacts on each LED strip is the same.2.Remove the tape on the backside of the LED strip around the area of…
