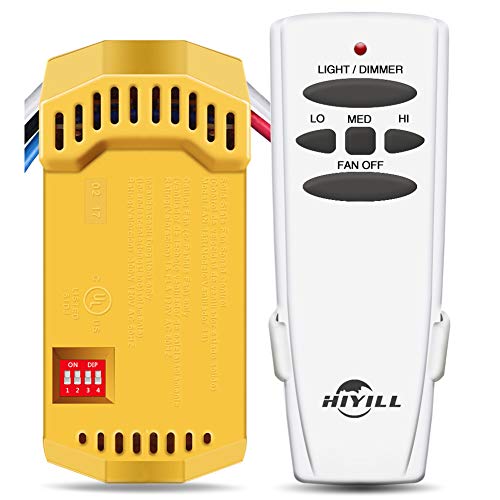

Universal Ceiling Fan Remote Control Kit,Yellow

Universal
HIYILL CFRCK32 Universal Ceiling Fan Remote Replace Hampton Bay /Harbor Breeze/ Hunter
Almost 95% regular ceiling fans will work well
Original OEM,FCC,UL approved,super fast shipping.

This remote is a direct replacement for the followings: UC7067, UC7078T, FAN-HD, CHQ7078T, UC7083T and more!

What does it control your fan and Light
3 Speed (H, M, L)
Light ON/OFF and Dimmer(Long press)
(Please note:ONLY incandescent and dimmable LED bulbs
Not fluorescent bulbs and CFL(compact fluorescent) bulbs.)

Main Technical Parameters
Input voltage:110-120V
AC Frequency:60Hz
Relative Humidity: Less than 85%
Maximum Power of applied Motor: Less than 0.6A
Controller Output Gear: According to material object
Maximum Power of Applied Light: Less than 300W
Wireless Transmission Mode:Radio Frequency (RF)
Remote control distance:100 ft(30 meters)
Radio Frequency Band: 433.92MHz

Warm Tips:
If you have PULL CHAINS SWITCH, before using the wireless remote control, use the PULL CHAINS SWITCH to turn the wind speed to maximum and turn the fan light on. Only in this way can the PULL CHAINS SWITCH and wireless remote control be used together;
This kit is to be purchased only to replace the receiver and remote your fan was originally installed with. You cannot simply add this unit to any fan that does not already have this receiver pre-installed.

Package Includes:
1 x Ceiling Fan Remote Control
1 x Handheld Remote Receiver
2 x Screws
6 x Wiring caps
1 x User Manual

Product Features

  • Universal Ceiling Fan Remote Complete Kit:FCC and UL approved,replace for Hampton Bay /Harbor Breeze/ Hunter and will work with 95% of the AC 3 Speed Ceiling Fans IN USA/CANADA;110-120V and 60Hz only.
  • This ceiling fan remote kit will control: Light On/Off (with dimming), Fan off, Fan speed low, Fan speed Medium, Fan speed High. (Dimming feature will only work with incandescent/dimmable LED bulbs or only on/off).
  • Matching dip switch for the transmitter and receiver:Look inside the old remote with the battery cover off. There is a series of ” DIP” switches(4) with a pen, slide the switches in the new remote to match the same pattern as the receiver. Replace the battery in the new remote and things should work well.
  • Please note:9V battery is required for transmitter(this package does NOT include Battery);The size of the receiver is:4.62*2.09*1.14 inch(Please make sure there is enough space foe receiver in the canopy of your fan).
  • Nice Warranty and After-sales e-mail service:This ceiling fan remote kit comes with a manufacturers 1-Year Replacement Warranty. For details, see ‘After-sales Service’ below.
